Detailed Engineering & CAD Services
Turning concepts into manufacturing reality. We provide world-class CAD engineering services tailored for the automotive and industrial sectors.
Core Engineering Competencies
Specialized CAD engineering services designed for complex product development and manufacturing.
Plastic Product Design
Detailed 3D modeling of complex automotive interior plastic components with proper draft, ribs, and boss features.
BOM Preparation
Creation of comprehensive Bill of Materials (BOM) including material specs, quantities, and supplier details.
Assembly Strategy
Defining attachment strategies using clips, heat stakes, welding, and screws for optimal assembly efficiency.
2D Documentation
Detailed drafting with GD&T application to ensure manufacturing compliance and quality control.
Structured Engineering Workflow

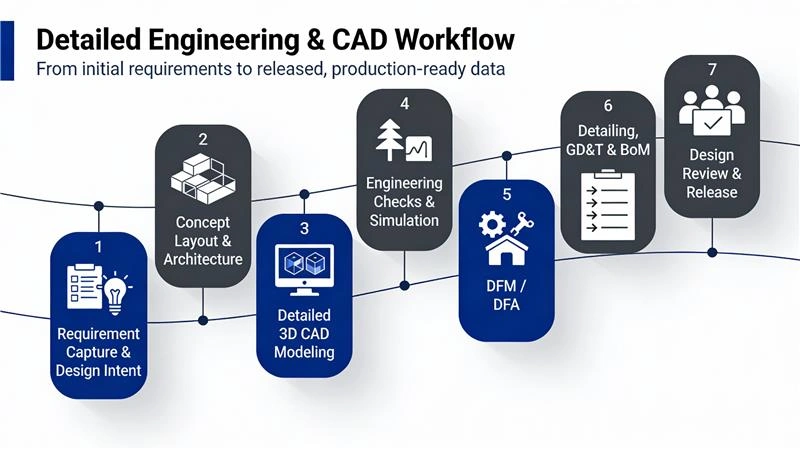

Our proven 7-step process ensures comprehensive CAD development from initial requirements to production-ready deliverables.
Parametric Design
Fully editable models with proper feature trees
Manufacturing Focus
DFM/DFA principles built into design
Quality Documentation
Complete GD&T and technical specs
Detailed Engineering Process Flow
Our structured approach ensures comprehensive CAD development from initial requirements to production release.
Requirement capture & design intent
The process begins by translating customer inputs, packaging constraints, regulations, and performance targets into a clear requirement set and design brief. This includes interfaces, benchmark data, and targets for cost, weight, manufacturability, and quality that will guide all downstream CAD work.
Key Activities
Concept layout & architecture
Engineers create architecture layouts and reference models, defining key datums, mounting schemes, section profiles, and envelope studies for the system or component. Multiple concepts are quickly iterated in 3D, evaluated against performance and manufacturing constraints, and converged into a feasible base concept.
Key Activities
Detailed 3D CAD modeling
Using parametric CAD, the team develops robust part and assembly models with structured feature trees, design tables, and relations that capture how components fit and move. Standard design rules, draft and fillet strategies, wall thicknesses, and engineering features such as ribs, bosses, and attachment strategies are applied for production-ready geometry.
Key Activities
Engineering checks & simulation integration
The CAD models are continuously checked for packaging, clash, draft, wall thickness, and mass properties, and are prepared for CAE, CFD, or durability simulations through idealized geometry and load/constraint definition. Feedback from analysis is looped directly into the CAD, refining stiffness, strength, NVH, and thermal performance without breaking model associativity.
Key Activities
Design for manufacturing & assembly (DFM/DFA)
Manufacturing, tooling, and assembly requirements are built into the CAD via appropriate parting lines, mold‑friendly features, machining allowances, joining methods, and tolerance schemas. Assembly sequences, access, fastener strategies, and mistake‑proofing features are reviewed jointly with process teams so the design runs smoothly in volume production.
Key Activities
Detailing, GD&T and BoM creation
Fully annotated 2D drawings are created from the 3D master, including dimensions, GD&T, surface finishes, notes, and critical inspection features aligned to functional requirements. Accurate Bills of Materials, part numbers, and configuration structures are generated to feed purchasing, tooling, and PLM/ERP systems.
Key Activities
Design review, release & change support
Structured design reviews validate that the CAD and drawings meet requirements, standards, and customer checklists before formal release. After release, engineering change requests are managed within the same parametric models, keeping history, references, and downstream deliverables synchronized through the full product lifecycle.
Key Activities
Software Expertise
We master industry-leading CAD software to deliver precision engineering solutions.
Final Deliverables
We provide comprehensive engineering outputs ready for manufacturing and production.
The Importance of Detailed Engineering in Product Success
In the journey from concept to consumer, detailed engineering is the phase where a product's success is truly defined. At MG Techworks, we understand that even the most brilliant concept can fail if the technical details are not meticulously executed. Our detailed engineering services focus on transforming high-level designs into precise, production-ready specifications that ensure functional reliability and manufacturing efficiency.
We specialize in the complex engineering of plastic components and mechanical assemblies. This involves deep dives into material selection, structural integrity, and assembly logic. By applying advanced CAD techniques and engineering principles, we resolve potential issues early, preventing costly late-stage changes and ensuring a smooth transition to volume production.
Our goal is to deliver a robust technical package that serves as the definitive blueprint for manufacturing. We don't just create models; we build engineered solutions that stand up to the rigors of real-world use.
Our Commitment to CAD Quality and Standards
Quality in CAD engineering is not just about how the model looks, but how it's built. At MG Techworks, we adhere to the highest industry standards for parametric modeling. Our models are built with clean feature trees, logical constraints, and robust associativity, making them easy to modify and update as the design evolves.
We place a heavy emphasis on GD&T (Geometric Dimensioning and Tolerancing) and 2D documentation. We believe that a clear, unambiguous drawing is essential for quality control and supplier communication. Our team ensures that every dimension and tolerance is functionally justified, reducing manufacturing ambiguity and ensuring that every part fits the first time.
Whether we are working in CATIA, NX, or SolidWorks, we follow best-in-class modeling methodologies. This commitment to technical excellence ensures that our deliverables integrate seamlessly into your PLM ecosystem and provide a reliable foundation for your entire product lifecycle.
